直接半导体激光器系统(3u)

产品描述：

激光功率控制电压高速跟踪响应，TTL出光信号，兼容所有激光加工软件的激光电源。

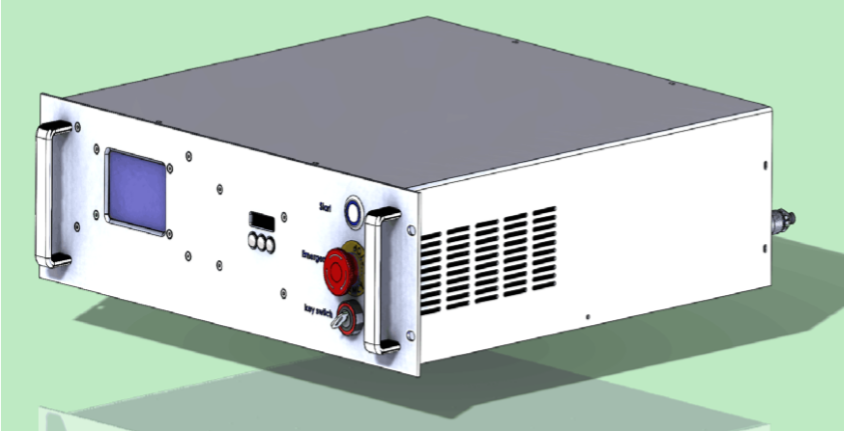

注：型号有多款配置不一样而外形有不同，图片以实物为准。

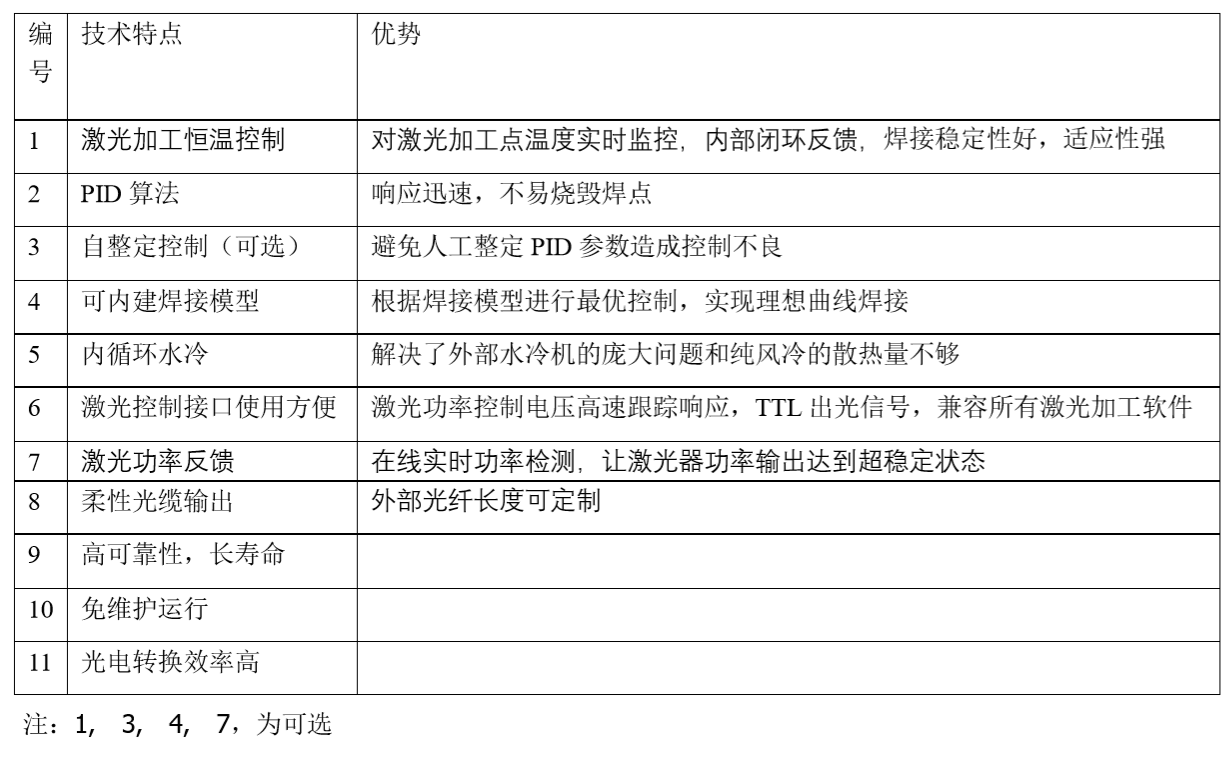

主要特点：

主要应用：

 激光锡焊
 塑料焊接
 高功率半导体激光器泵浦源。
 激光淬火表面热处理、激光熔覆
 金属薄板焊接
 3D 打印
 激光研究

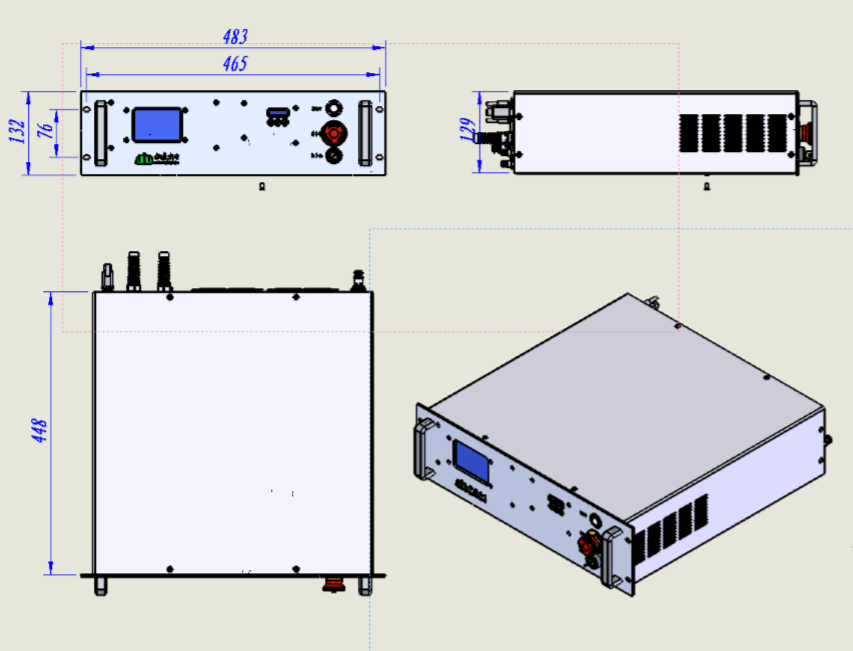

产品外形尺寸规格：

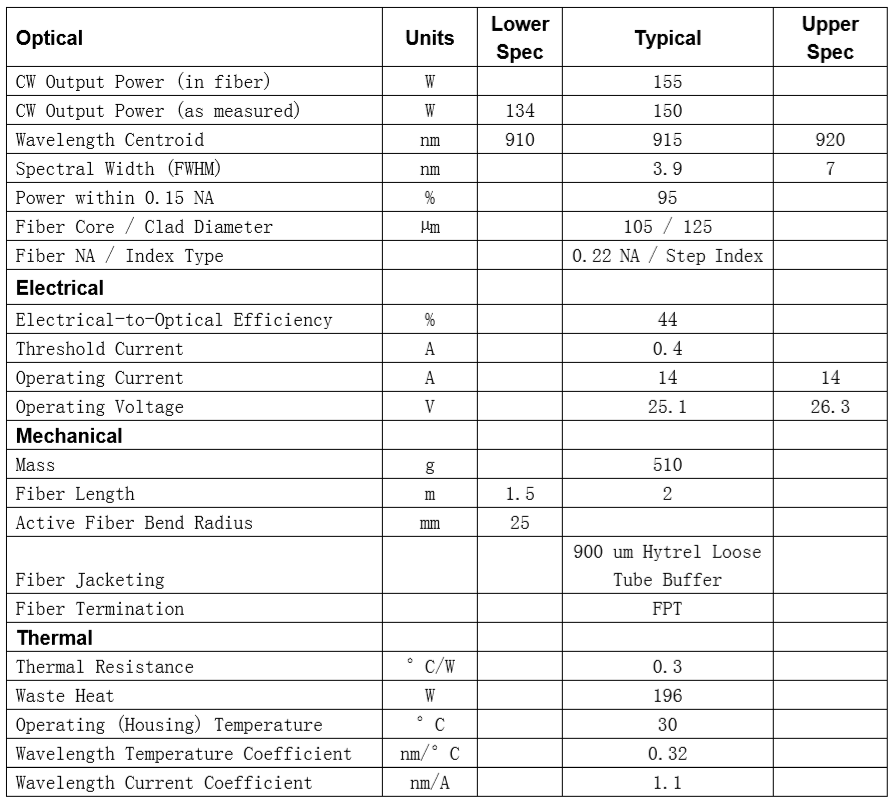

技术参数（泵浦源）

Notes

1. Production specification shown are for beginning of life performance. End of life operating current (Iop) is 120% beginning of life Iop.

2. A non-condensing environment is required for operation and storage. Storage conditions are from -20 to +70 oC with relative humidity between 5 to 85

3. Operating temperature defined by the package housing. Acceptable operating range is 20 - 35C, but performance may vary 4. Export Control Classification Number (ECCN) as defined by the Export Administration Regulations (EAR).

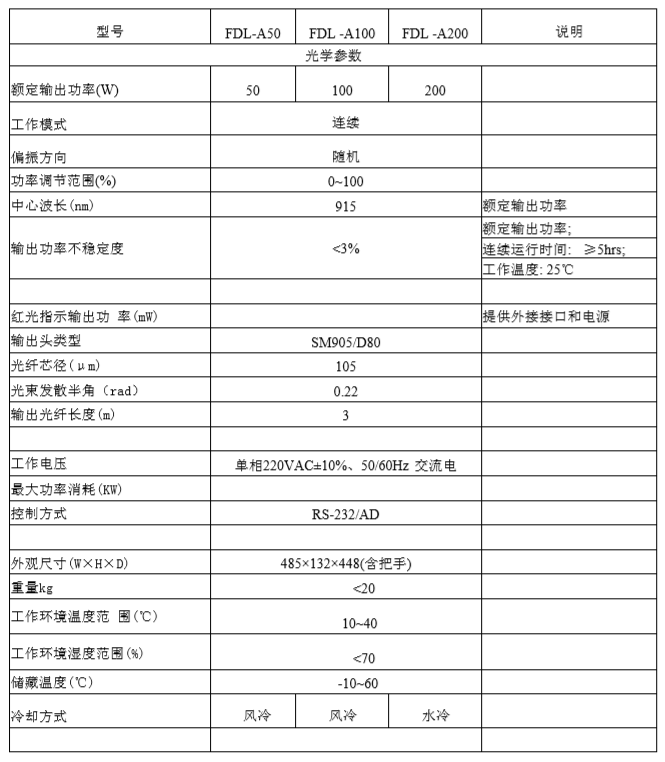

系统技术参数
